AD20 2 Ton Mini Excavator with Load-Sensing Hydraulic System and Expandable Tracks
A Premium Compact Excavator Designed for Precision Operation, Stability and Long-Term Reliability
Advanced Load-Sensing Hydraulic System
Equipped with a load-sensitive multi-way valve, the AD20 provides smoother operation, faster response and more precise control.
Superior Stability with Solid Rear Counterweight
The integrated solid rear counterweight improves machine balance and enhances stability during digging operations.
High Performance Hydraulic System
Up to 41.4 L/min hydraulic flow and 22 MPa working pressure provide strong digging performance and efficient attachment operation.
Expandable Rubber Tracks
Standard expandable undercarriage allows easy access to narrow working areas while maintaining excellent stability.
Premium Hydraulic Components
Equipped with Danfoss swing motor and Hengli travel motors for reliable performance and longer service life.
Operator-Friendly Design
Luxury seat, foot-controlled travel pedals and optimized maintenance access improve operator comfort and daily efficiency.
- Overview
- Recommended Products

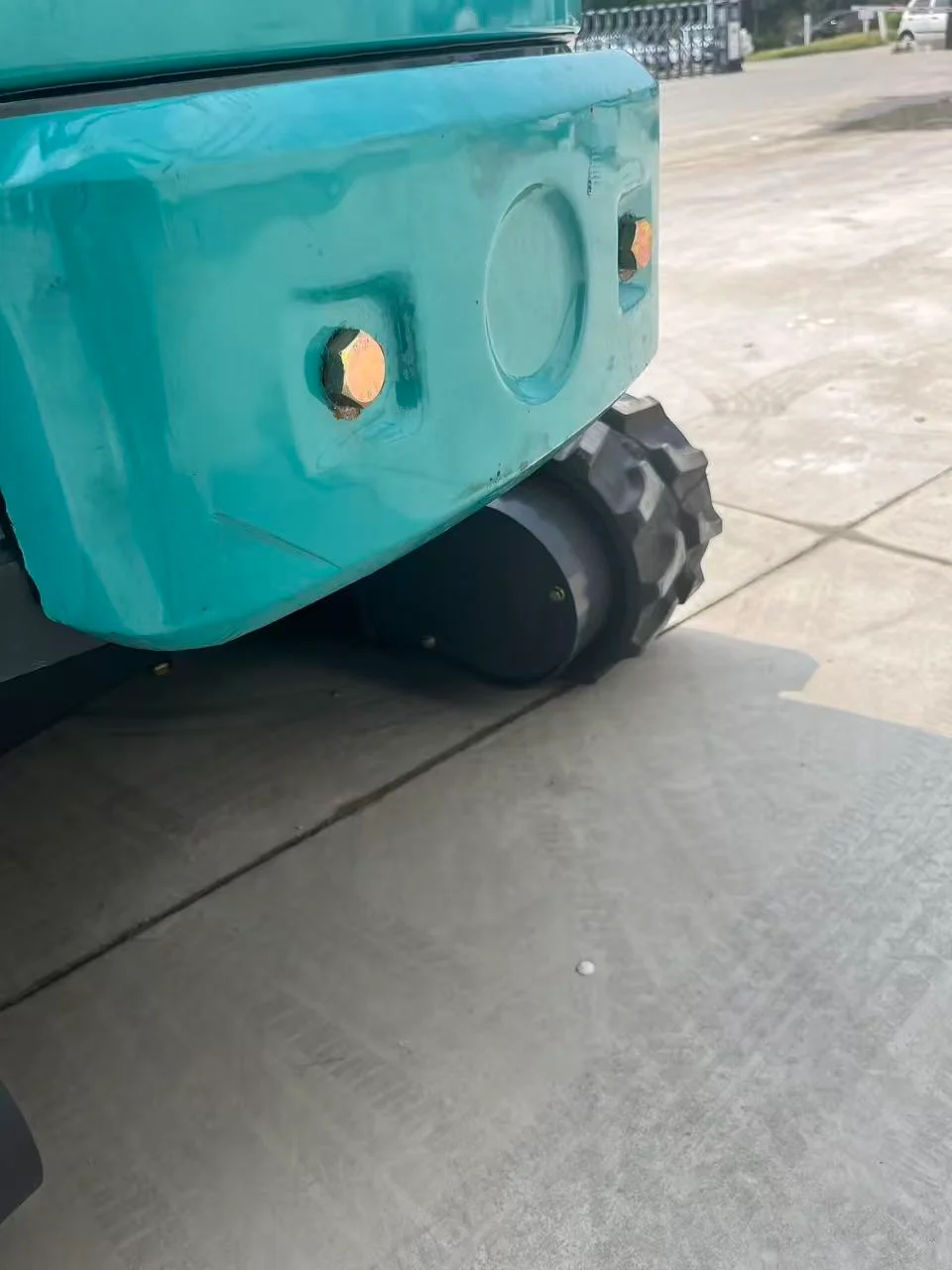

- Solid rear counterweight design improves machine stability and reduces vibration during digging.
- Hidden single-speed travel motors provide stronger torque and better protection against external impact.

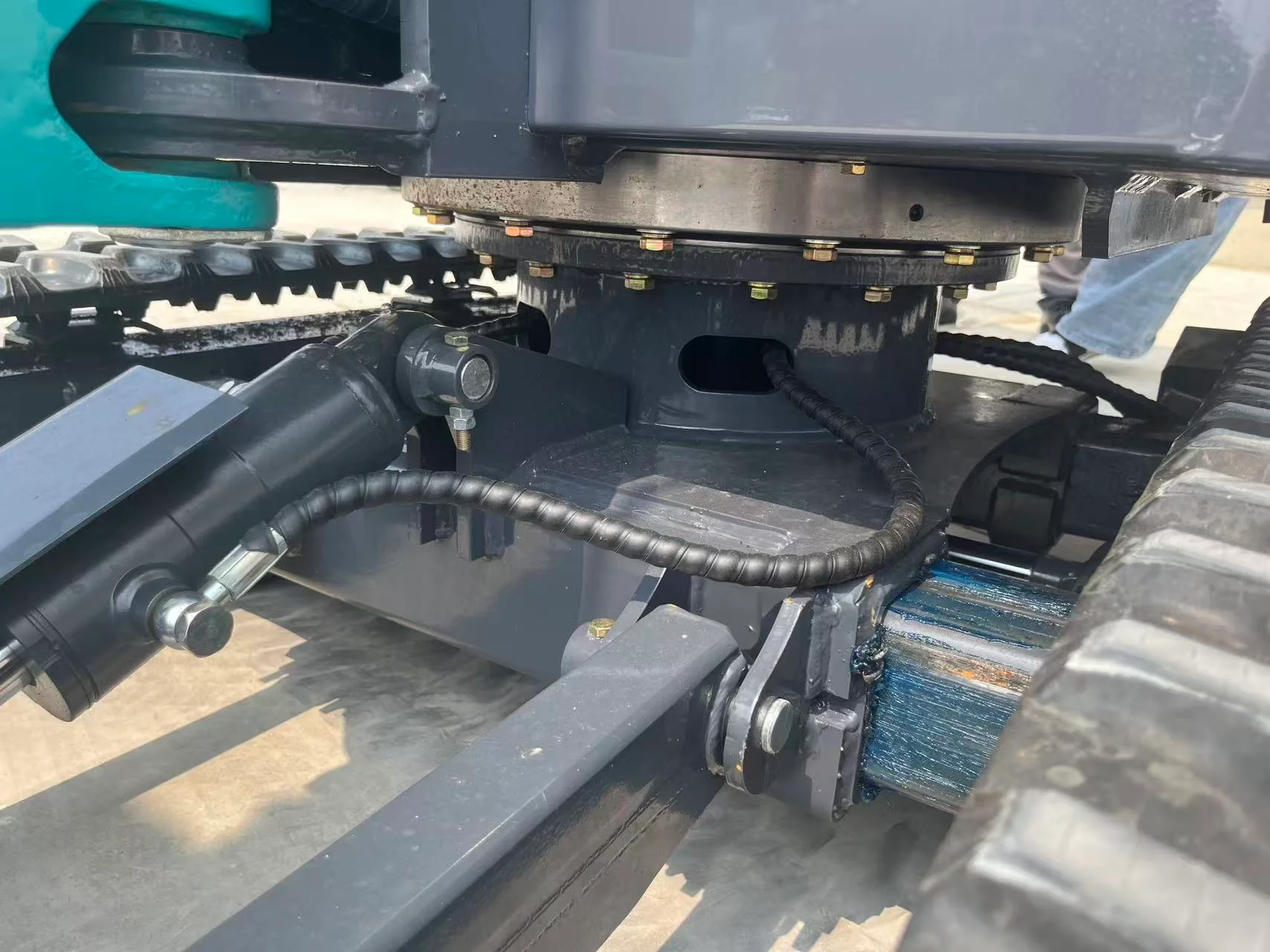

- 465mm internal gear swing bearing ensures smooth rotation and long-term durability.

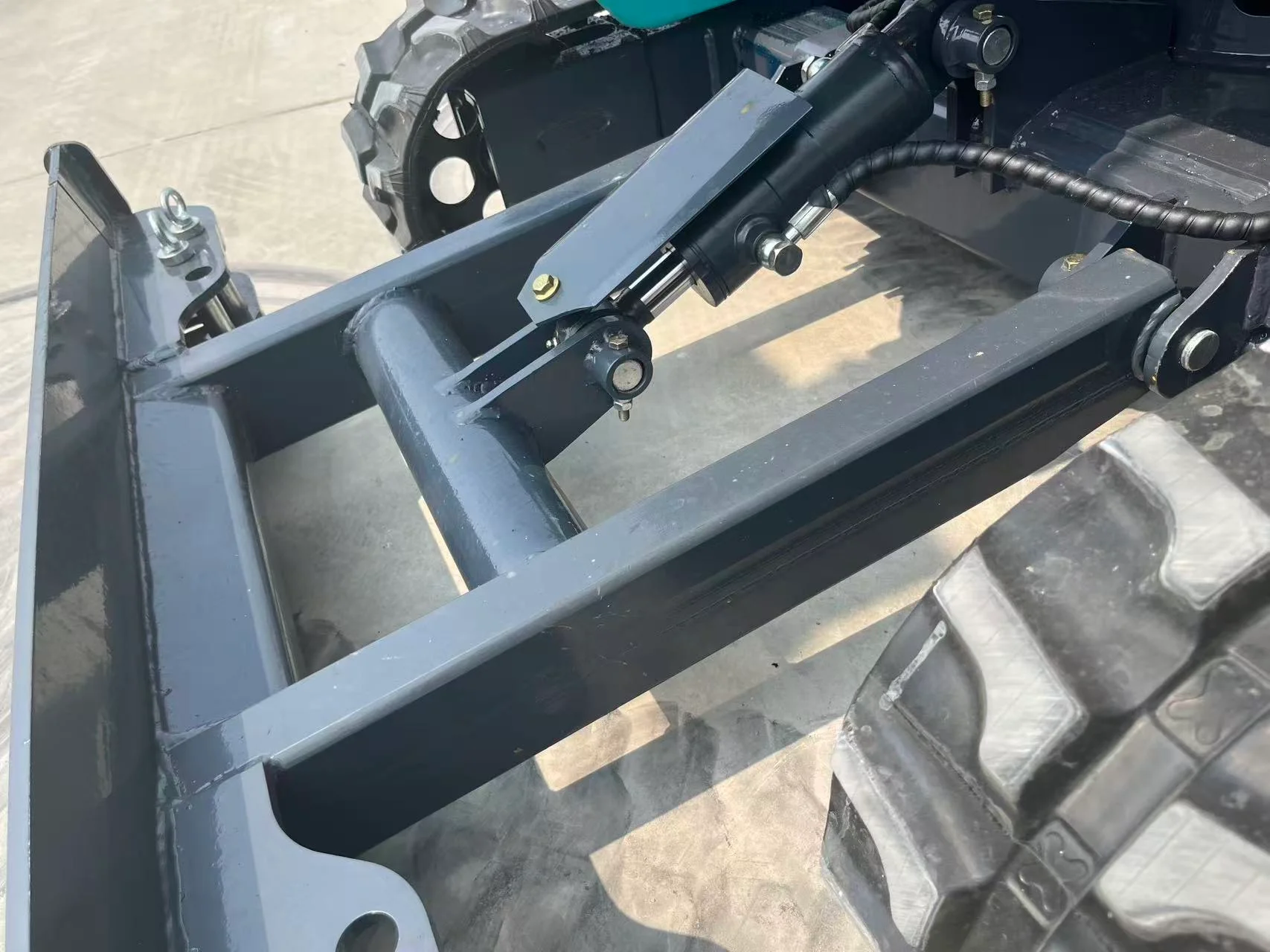

- Removable dozer blade design provides flexible operation and easier transportation.

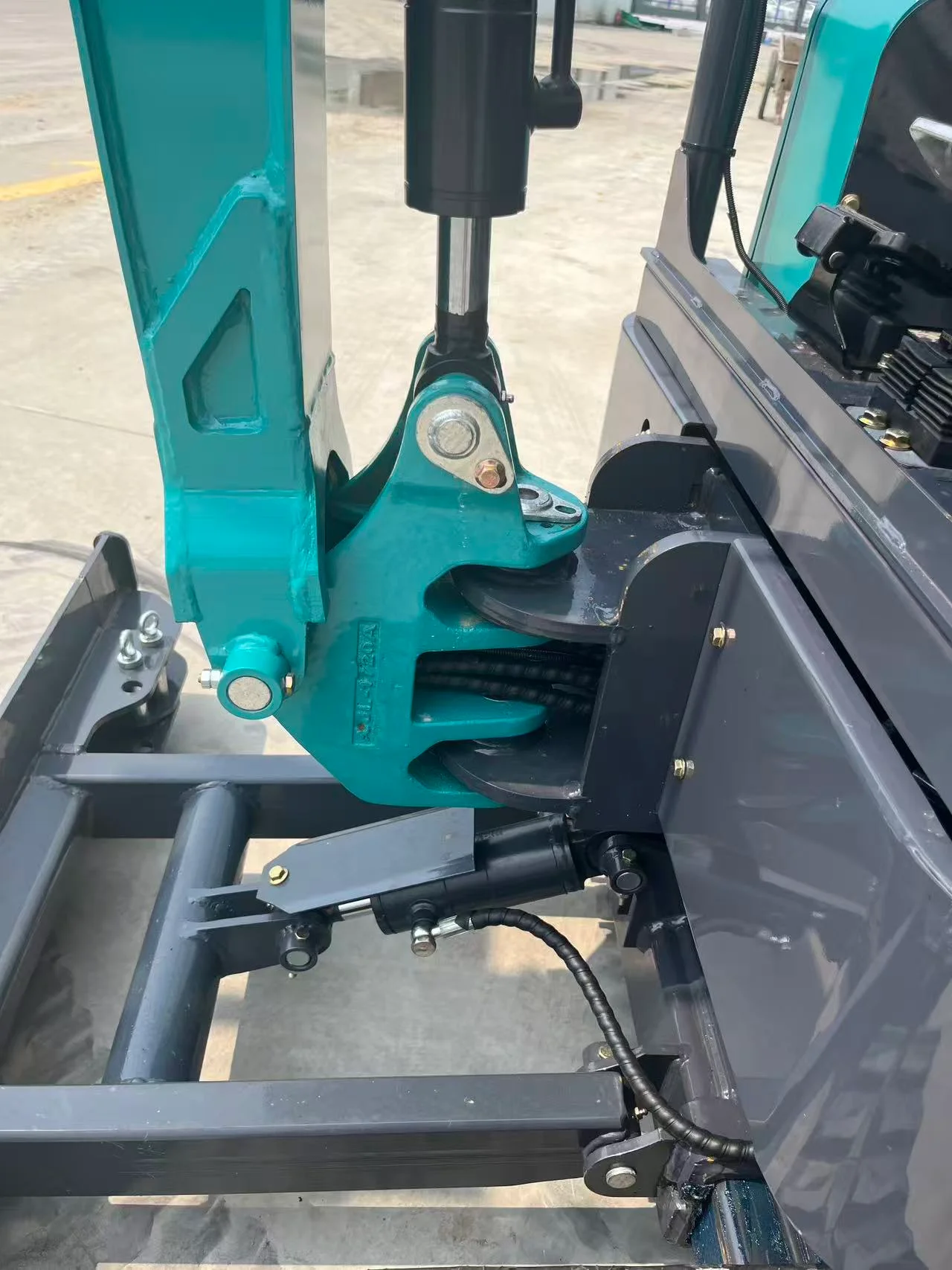

- Standard boom swing function allows flexible operation in narrow working environments.
- Expandable tracks improve stability while allowing access through limited spaces.

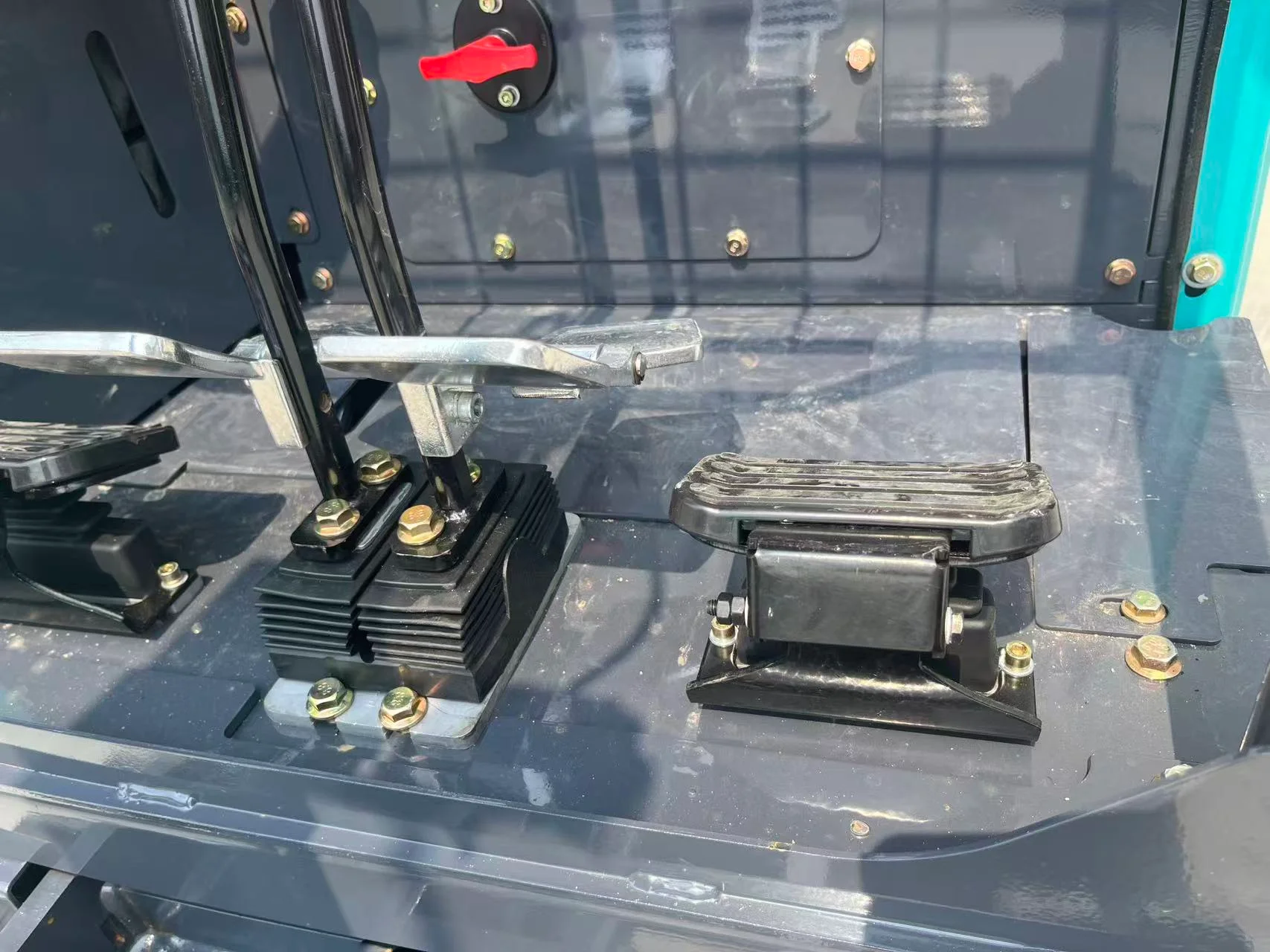

- Foot-controlled travel valve provides smoother and more precise movement control.

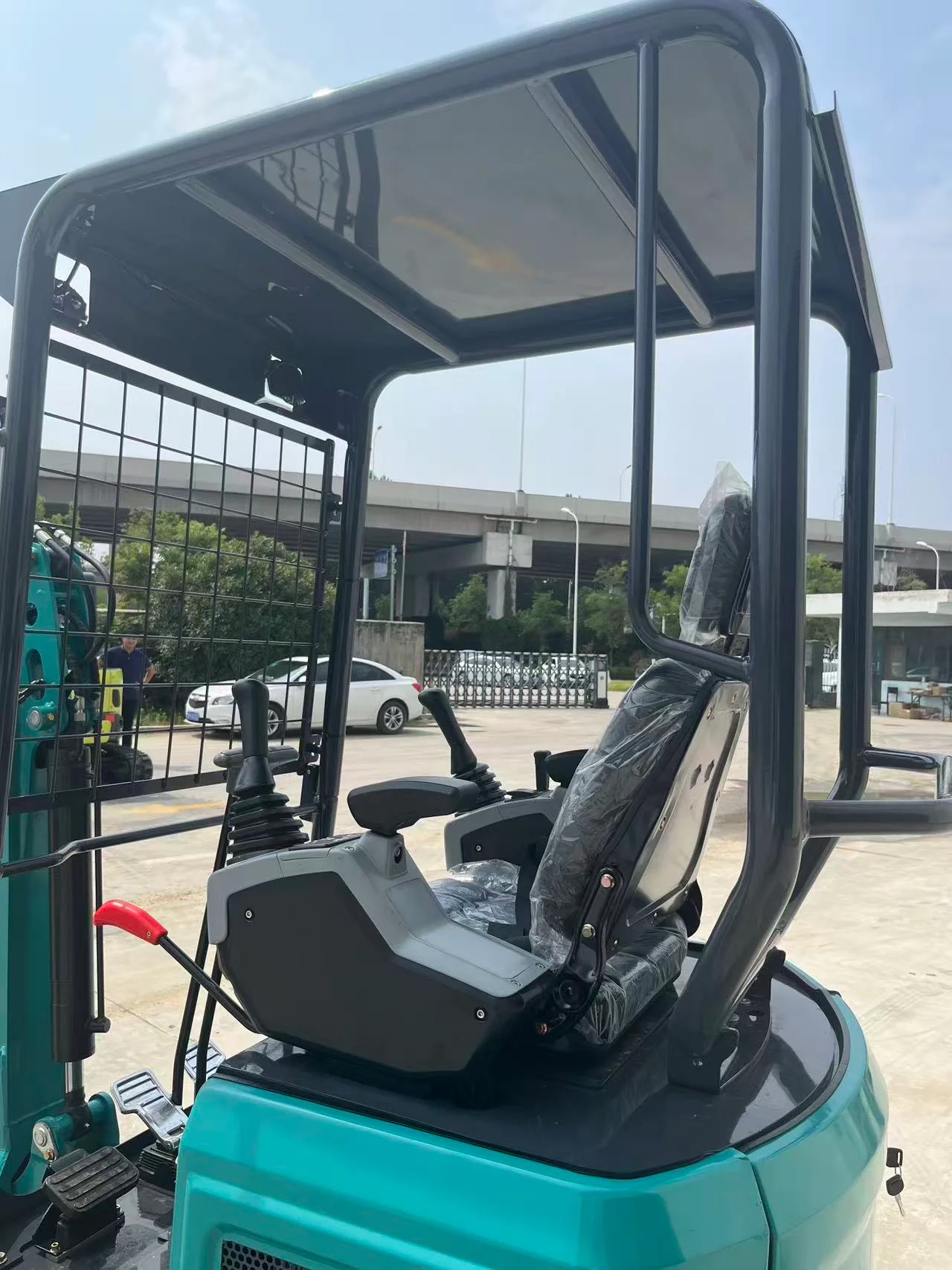

- Luxury operator seat improves comfort during long working hours.
- Anti-impact protective mesh is equipped on canopy models for enhanced safety.
- Danfoss swing motor for smooth and stable rotation performance.
- Hengli travel motors from a leading Chinese hydraulic manufacturer.
- Hydraulic breaker pedal system for more accurate attachment control.
- Optimized fuel filling port and battery maintenance access.
- Main power protection switch prevents battery drainage after shutdown.
- Boom retract cushioning system reduces impact and improves operator comfort.
- Landscaping projects
- Agricultural applications
- Residential construction
- Pipeline installation
- Municipal maintenance
- Rental fleet operations

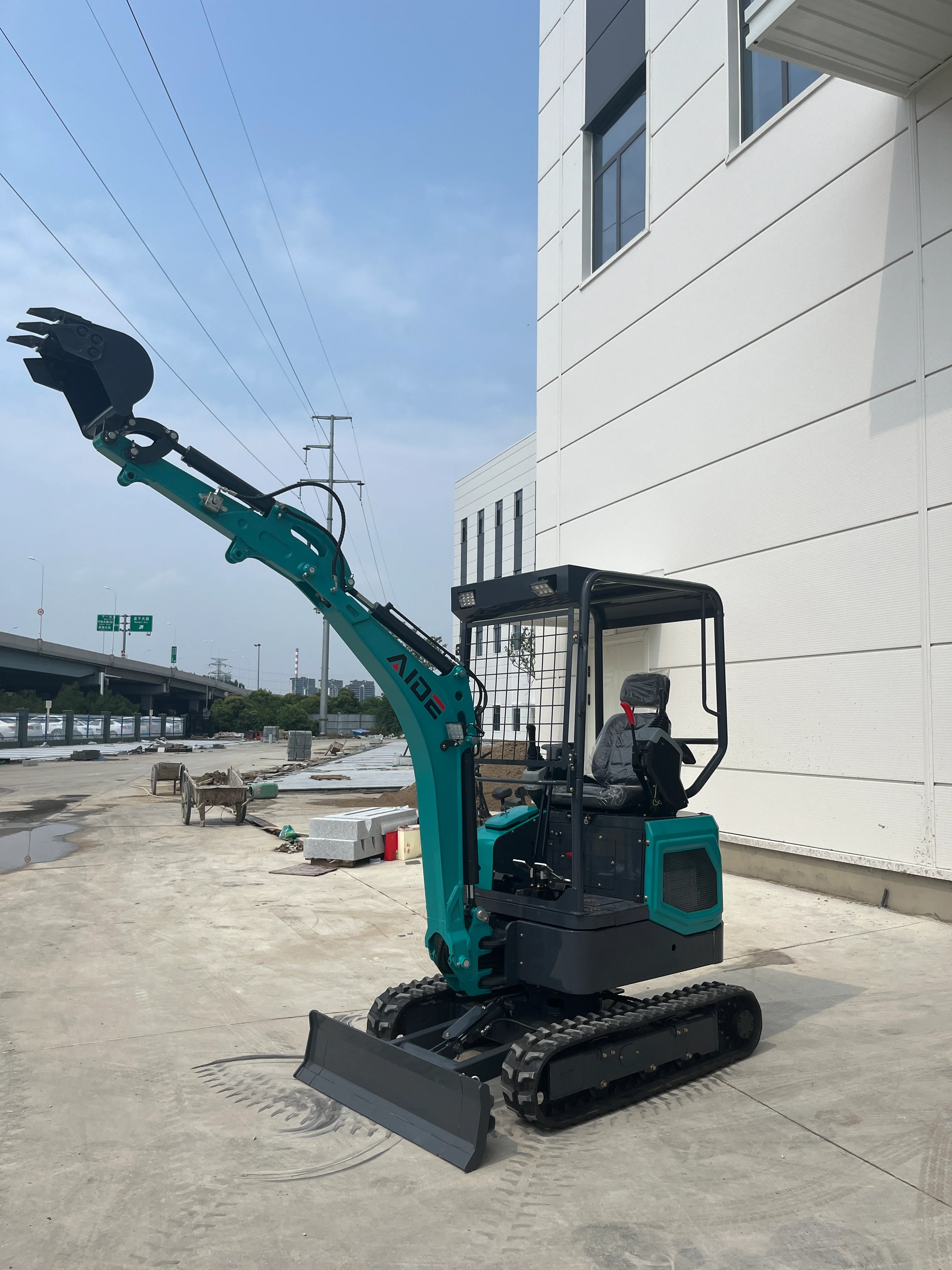

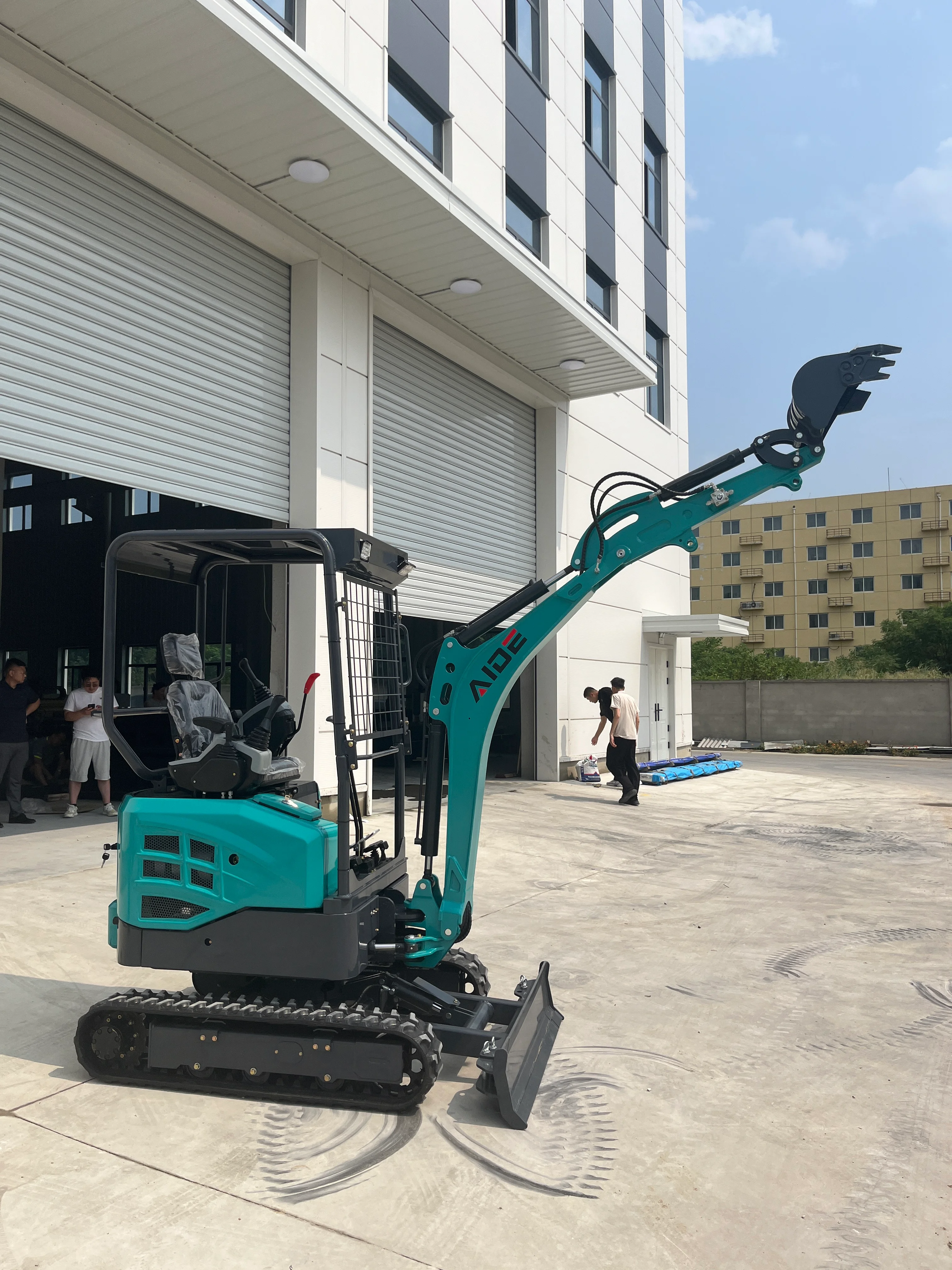

AIDE AD20 2 Ton Mini Excavator
The AIDE AD20 2 ton mini excavator is a high-performance compact excavator designed for landscaping, construction, agriculture, utility work and rental applications. Combining a load-sensing hydraulic system, stable undercarriage design and premium hydraulic components, the AD20 delivers precise operation, powerful digging performance and excellent reliability.
Powerful Digging Performance
The AD20 mini excavator offers excellent digging capability with optimized hydraulic power. Different configurations provide flexible performance options for various working conditions.
| Model | Bucket Digging Force | Arm Digging Force |
|---|---|---|
| AD20 Standard | 14.5 KN | 9 KN |
| AD20 Mid Configuration | 14 KN | 9 KN |
| AD20 Premium | 16 KN | 9.5 KN |
Advanced Hydraulic System
The AIDE AD20 adopts a load-sensitive multi-way valve system, allowing operators to achieve smoother and more accurate movements. The hydraulic system provides efficient power distribution and improves overall working performance.
| Model | Hydraulic Flow | Working Pressure |
|---|---|---|
| AD20 Standard | 26.4 L/min (Laidong Stage II) 28.8 L/min (Laidong Euro V) |
18-20 MPa |
| AD20 Mid | 23 L/min | 18-20 MPa |
| AD20 Premium | 41.4 L/min | 22 MPa |
Stable Structure and Reliable Performance
Professional Configuration for Efficient Operation
Premium Hydraulic Components
The AD20 compact excavator uses reliable hydraulic components including:
Easy Maintenance Design
Applications
The AIDE AD20 mini excavator is suitable for:
Why Choose AIDE AD20 Mini Excavator?
With advanced hydraulic technology, stable structure and premium components, the AD20 provides professional-level performance in a compact size. It is an ideal solution for dealers and contractors looking for a reliable 2 ton mini excavator.
