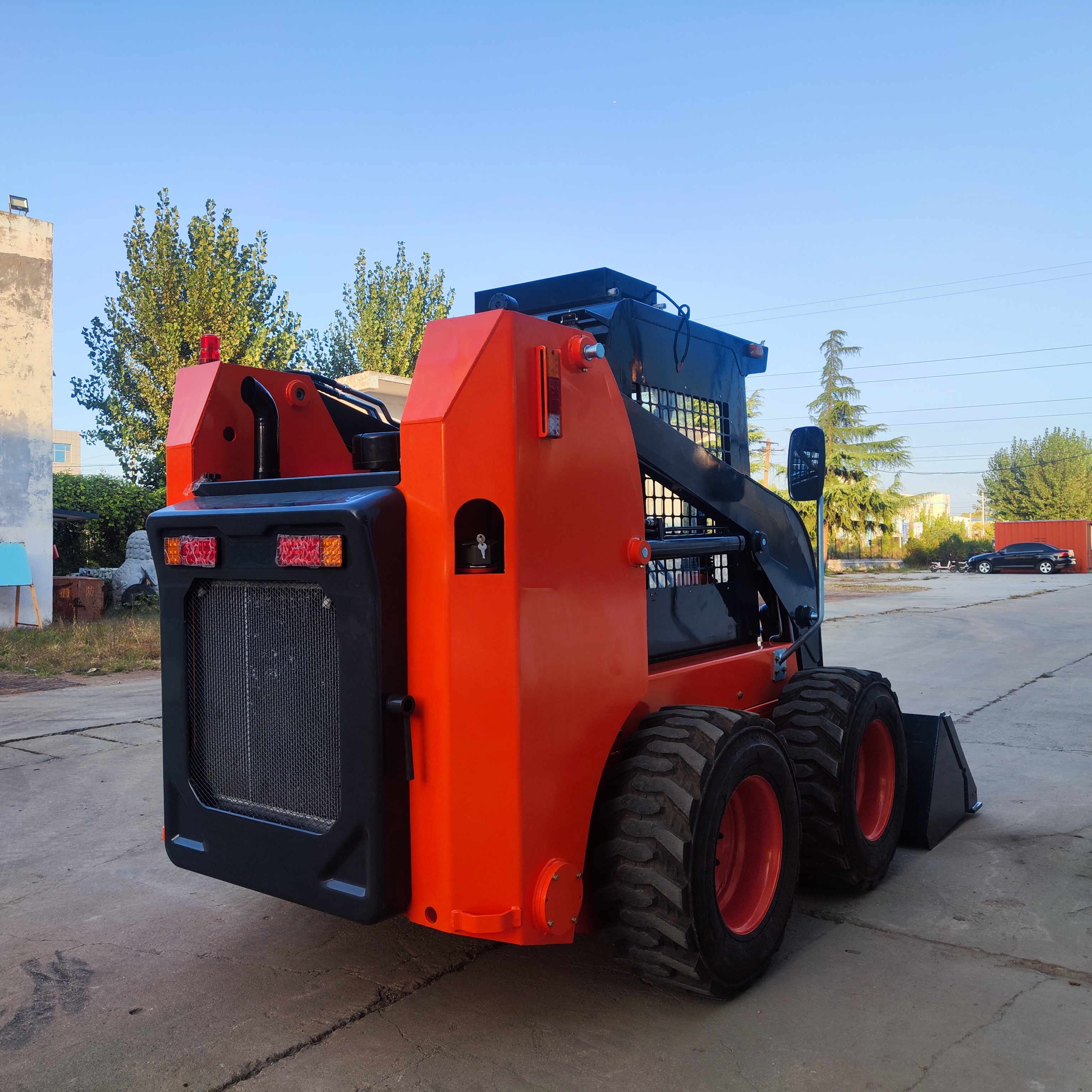

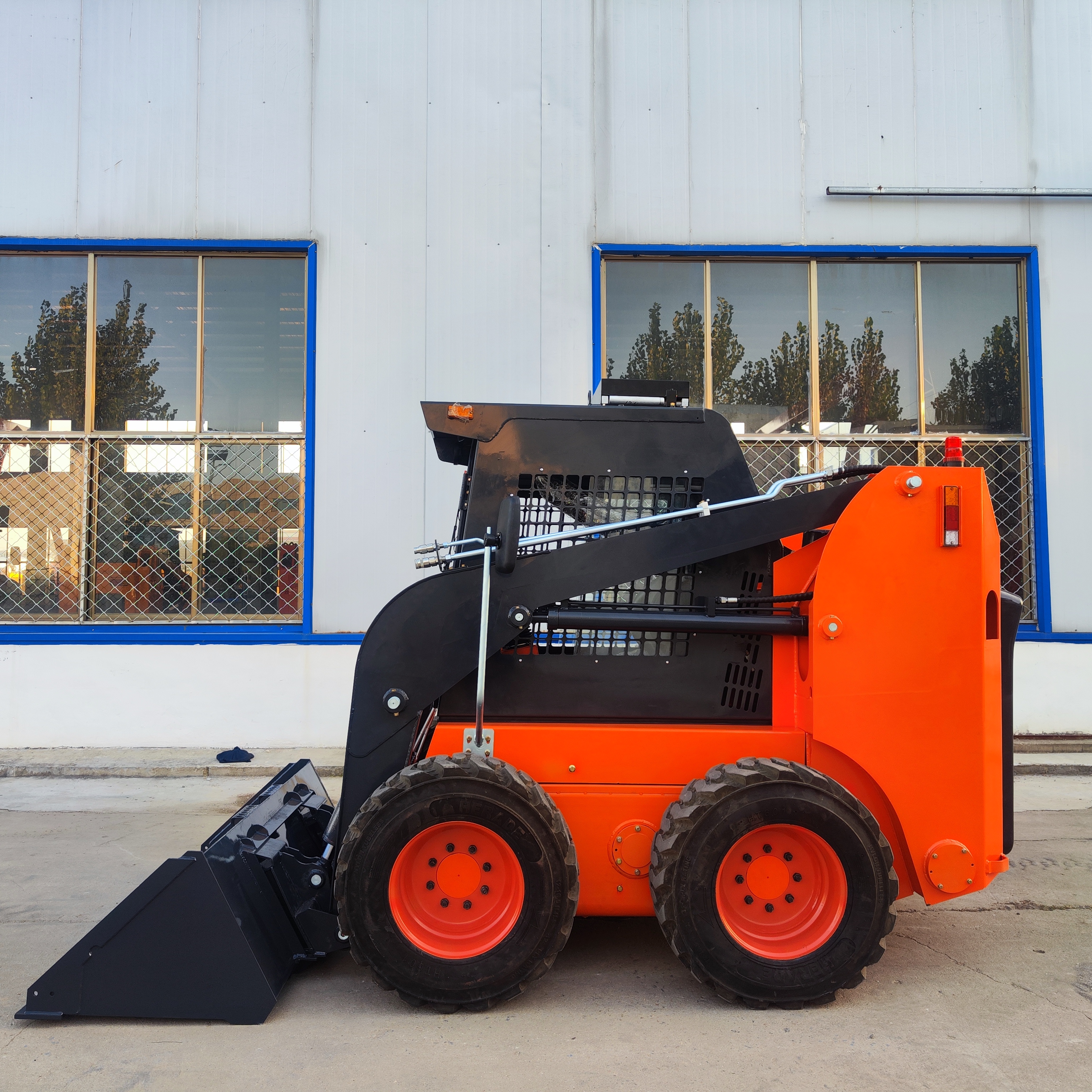

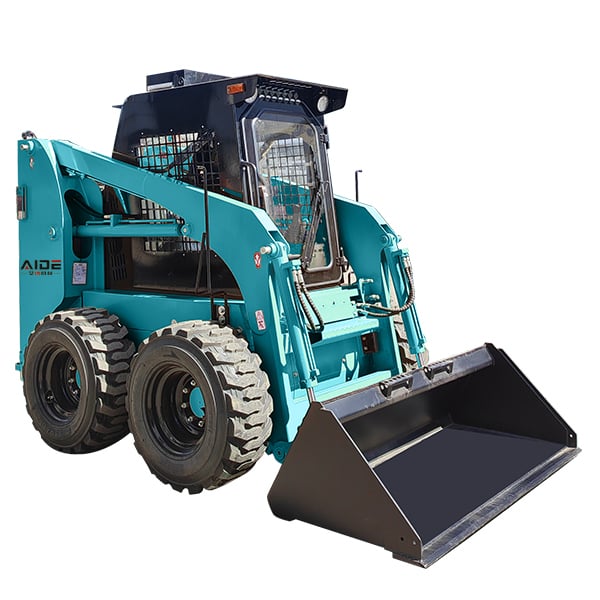

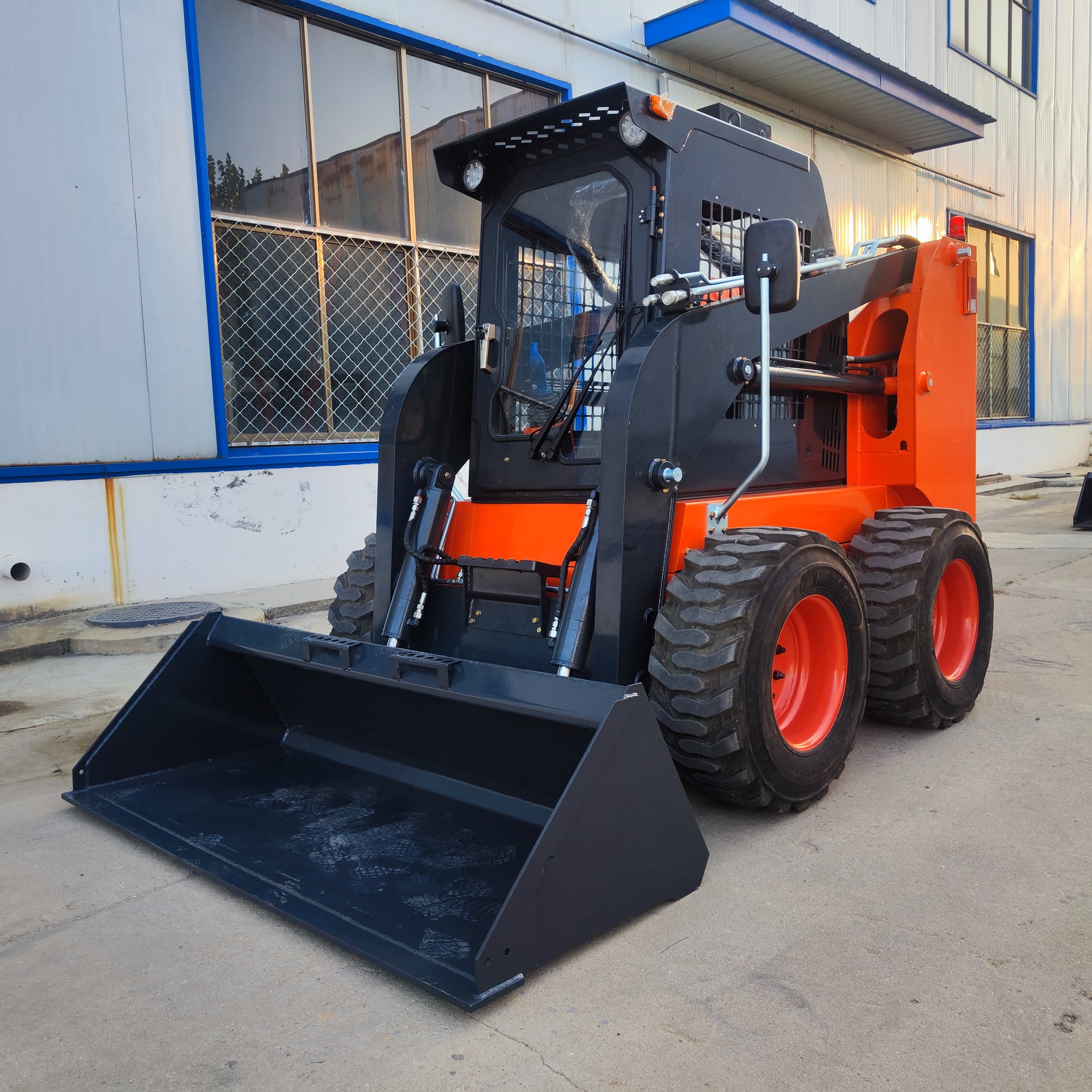

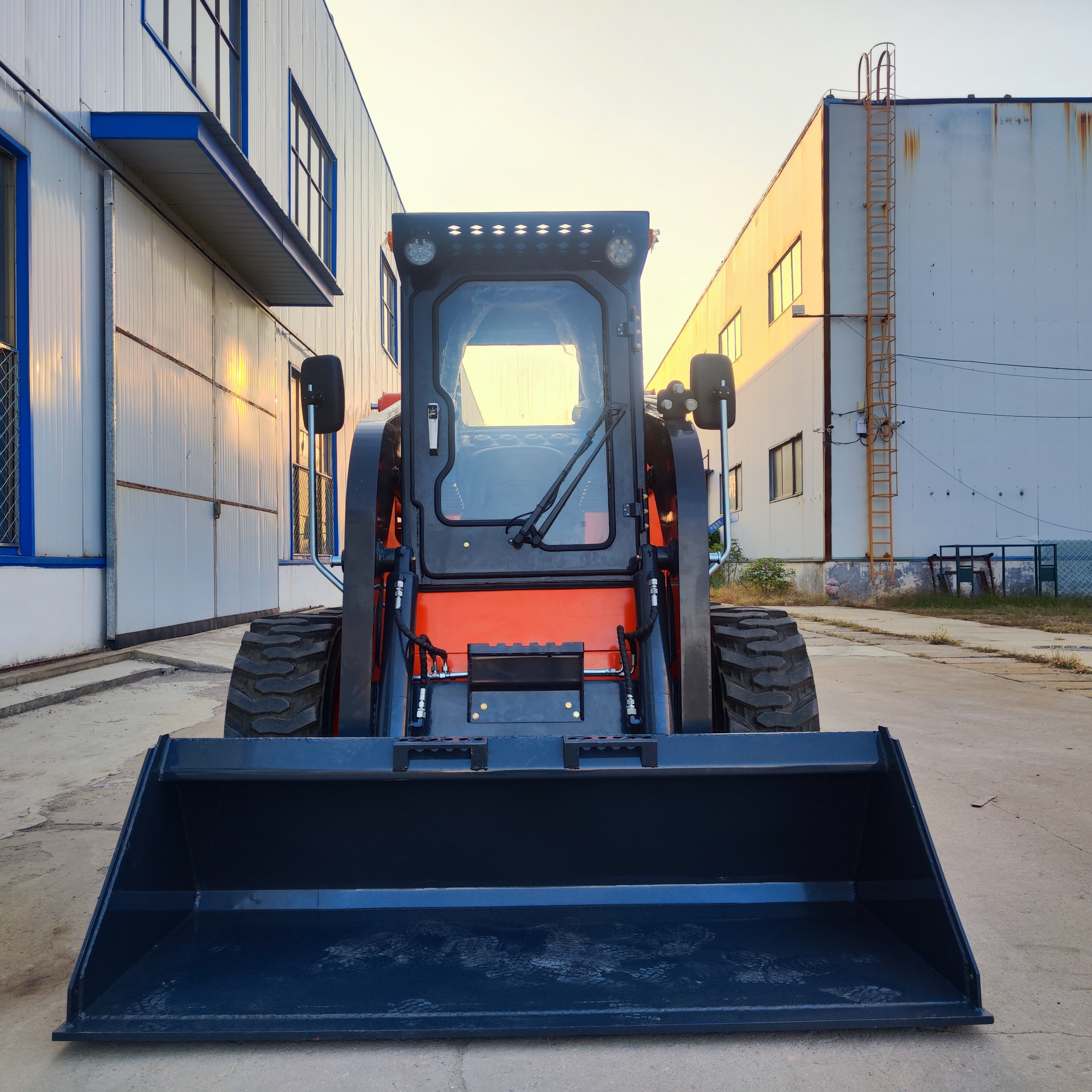

AD65 Large Wheeled Skid Steer Loader
Large wheeled skid steer loaders are widely applied in construction projects, farm operations, landscaping, warehouse material handling, road maintenance and urban renovation. Equipped with various attachments, they can complete shoveling, loading, transporting, clearing, trenching and snow removal tasks efficiently.
- Overview
- Recommended Products
1、Flexible zero-turn steering, suitable for narrow and complex working spaces.
2、High travel speed and low ground damage compared with crawler models.
3、Easy maintenance and lower daily operating costs.
4、Strong power output and outstanding load-bearing capacity.
5、Compatible with a full range of attachments to realize multi-functional operation.
Model |
AD65 |
Operating load (kg) |
1050 |
Max Speed（km/h） |
10 |
Rated flux (L/min) |
89 |
Tire（track） model |
12-16.5NHS |
Rated power (Kw) |
55KW |
Fuel tank capacity (L) |
75 |
dead weight (kg) |
3300 |
self weight bucket (kg) |
3400 |
Bucket capacity (m³) |
0.5 |
|
Overall operating height (mm) |
3987 |
|
Height to bucket hinge pin (mm) |
3018 |
Hheight to top of cab (mm) |
2295 |
|
Height to bottom of level bucket (mm) |
2862 |
Without bucket length（mm） |
2527 |
|
Overall length with bucket (mm) |
3428 |
|
Dumping angle at maximum height ( ° ) |
32 |
Dumping height (mm) |
2410 |
Dumping reach (mm) |
850 |
|
Rollback o bucket on ground ( ° ) |
23 |
|
Rollback of bucket at full height ( ° ) |
95 |
Wheelbase (mm) |
1074 |
Ground clearance (mm) |
205 |
Angle of departure ( ° ) |
20 |
Front turning radius without bucket (mm) |
1320.5 |
Front tuning radius (mm) |
2096.5 |
Rear tuning radius (mm) |
1647.5 |
Rear axle to bumper (mm) |
1057 |
Tread width (mm) |
1498 |
